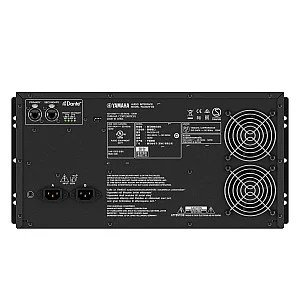

Yamaha Rio3224 D2 32 Input and 24 Output Dante Stage Box

Features:
32 great-sounding mic preamps achieve a transparent, natural sound
Connects directly to a Dante digital audio network for flexible system configuration at up to 96kHz
4 stereo AES outputs expand your connectivity
Dual redundant power supplies ensure peace of mind
Supports daisy-chain connections
Benefit from local control of gain and other parameters
Character display offers easy visual confirmation of your settings

Specification

• Type: Stage Box Remote Interface

• Compatibility: Rivage PM7 Mixing System, CL Digital Mixer, QL Digital Mixer

• Channels: 32 x 16 (analog), 32 x 24 (including AES/EBU)

• Inputs – Mic Preamps: 32 x XLR

• Phantom Power: Yes (remote on/off)

• Outputs – Main: 16 x XLR (line out)

• Outputs – Digital: 4 x XLR (AES/EBU)

• Data I/O: 2 x Ethernet (Dante Primary, Secondary)

• Software: Dante Controller, R Remote Application

• Rackmountable: Yes, 5U

• Power Source: Dual Redundant Power Supply, 2 x Standard IEC AC inputs

• Height: 8.6″

• Depth: 14.2″

• Width: 18.9″

• Weight: 27.3 lbs.

• Manufacturer Part Number: Rio3224-D2
