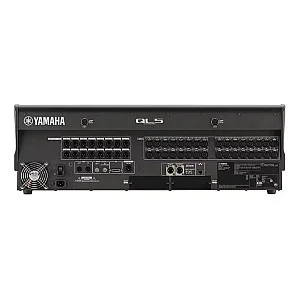

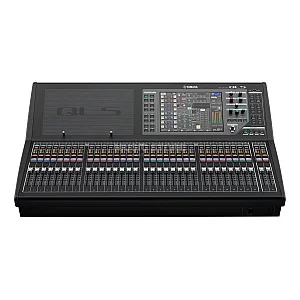

Yamaha QL5 64 Channel Digital Mixer

Features

• Mix channels: 64 mono, 8 stereo.

• Busses: 16 mix, 8 matrix (Input to Matrix supported).

• Local I/O: 32 in, 16 out.

• Fader configuration: 32 + 2 (Master).

• Stainless steel iPad support stays.

• Premium internal processors simulate classic studio gear and more

• Rupert Neve-designed EQ and dynamics for studio-quality sound

• Automixing functionality via the Dan Dugan automatic mixer

• Dante network support lets you create complex system designs

• Remote control via tablet or computer lets you go deep into your mix

• Tons of scene memory, customization options, and more

•

Specifications

• Type:Digital

• Channels:64 mono, 8 stereo mixing channels

• Inputs – Mic Preamps:32 x XLR

• Phantom Power:32 channels

• Outputs – Main:16 x XLR (Omni)

• Inputs – Digital:2 x EtherCon Cat5 (Dante Primary, Secondary)

• Outputs – Digital:1 x XLR (AES/EBU), 2 x EtherCon Cat5 (Dante Primary, Secondary)

• Busses/Groups:16 x Bus

• Channel Inserts:Yes

• Talkback:Yes

• MIDI I/O:In, Out

• Data I/O:Ethernet

• I/O Expansion Slots:2 x Slots (MY expansion)

• Headphones:1 x 1/4″

• Word Clock:In, Out

• Faders:34 x 100mm Throw

• EQ Bands:4-band Parametric

• Effects:Yes

• Height:10.7″

• Depth:22.2″

• Width:32.6″

• Weight:48.1 lbs.

• Manufacturer Part Number:QL5​
