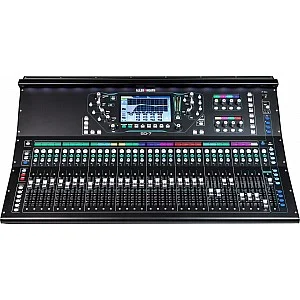

Type:Digital Mixer
Channels:48
Inputs – Mic Preamps:32 x XLR
Phantom Power:32 channels, Talkback
Inputs – Line:32 x XLR (mic/line)
Inputs – Other:2 x 1/4″ (Stereo 1), 2 x 1/4″ (Stereo 2)
Outputs – Main:2 x XLR, 2 x 1/4″ (A out, B out)
Outputs – Other:16 x XLR (stereo mixes, L/R)
Outputs – Digital:1 x XLR (AES)
Busses/Groups:36 Bus
Inserts:Internal Pre EQ/Compressor
Talkback:1 x XLR
MIDI I/O:USB (control)
Data I/O:1 x EtherCon (dSnake, DX mode, gigaACE), 1 x Ethernet RJ-45 (LAN TCP/IP)
Remote:1 x 1/4″ (footswitch)
USB:1 x Type B, 1 x Type A
Computer Connectivity:USB (32 x 32), Ethernet
I/O Expansion Slots:1 x Option card port (Dante, Waves)
Headphones:1 x 1/4″
Faders:33 x 100mm motorized
A/D Resolution:24-bit/96kHz
EQ Bands:Parametric EQ, 28-band Graphic, HPF
Effects:Delay, Reverb, Chorus, Flanger, Phaser (8 x RackFX engine)
Signal Processing:Compressor, Gate
DAW Control:MIDI DAW control via USB
Screen:7″ color touch screen
Storage:USB Type A (16 x 16)
Software:Wireless Remote Mixing app iPad/Android (network router not included)
Power Source:Standard IEC AC connector
Height:7.8″
Depth:20.3″
Width:31.7″
Weight:23.1 lbs.
